Portal System

The VEDIC system features a versatile portal profile that integrates seamlessly with all VEDIC series. This design offers exclusive elements and innovative solutions for access control device installation and meeting scheduler devices

Whether you need curved glass, bent glass, laminated glass or colored glass, We can deliver & execute the most complex designs with huge experience from the market. According to the need, we can bend the sections without compromising on shade, variations and quality of workmanship.

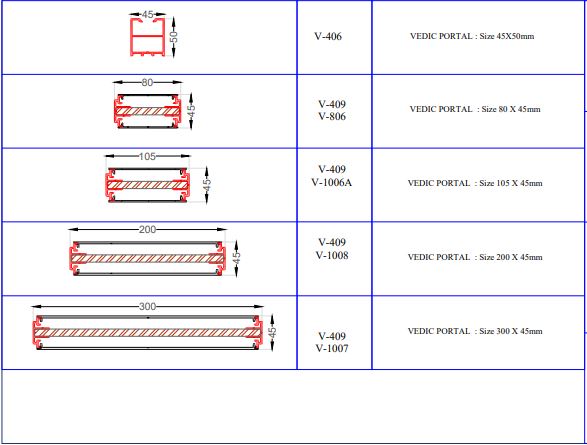

Panels Comes In Size : 45mm x 50mm which is compatible with MERCURY 25 and VENUS 45 series)
Other multiple options – 45mm x 80mm / 45mm x 105mm / 45mm x 200mm / 45mm x 300mm

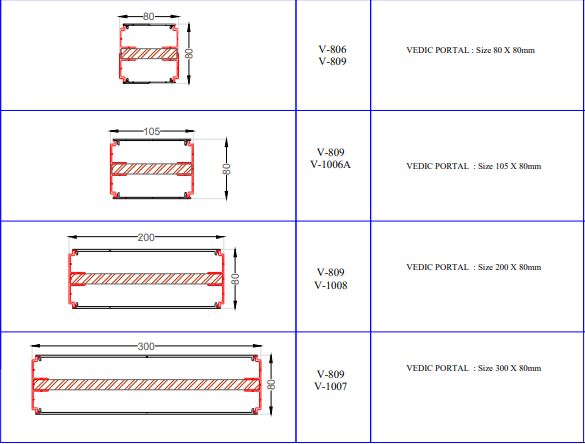

80mm x 80mm / 80mm x 105mm / 80mm x 200mm / 80mm x 300mm

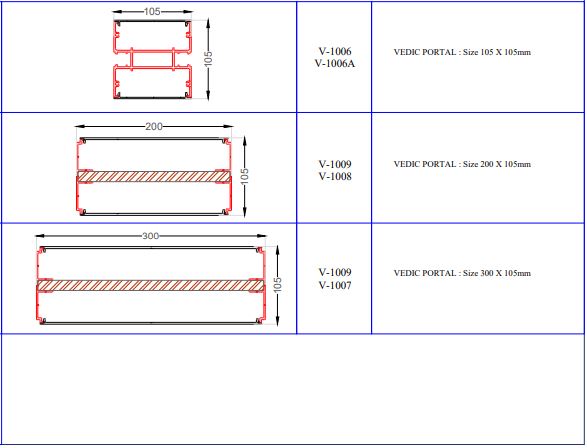

105mm x 105mm / 105mm x 200mm / 105mm x 300mm
These sizes are available for the Earth, Mars, Jupiter, and Saturn series.

Shades Available:
Silver Anodized / Mid Night Black /Mill Finish (available upon request) /Anodizing shades or powder coating subject to testing on VEDIC profiles (minimum order quantity: 500 sqft)

Compatible to glass thickness:

• 10mm and 12mm clear toughened or 10.7, 11.10 and 11.52 clear laminated glass.
• Partition height can be up to 3000mm.
• All exposed aluminum sections are anodized and comes in 6063 with T6 grade.
• VEDIC can execute complex designs, including curved glass, bent glass, laminated glass, and lacquered glass
• Sections can be bent without compromising shades, variations, or quality of workmanship.
